Kugel-Schaftfräser ( TiAlN-beschichtet )
3-Schneiden, 30° Rechtsdrall, Form HA

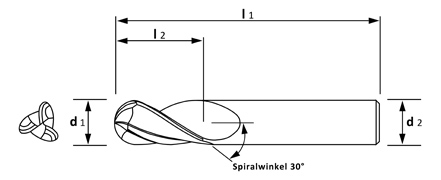

3-Schneiden, 30° Rechtsdrall, Form HA
| Toleranz (mm) | |
| d1 | d2 |
| +0,000/-0,050 | h6 |
| Beschichtung | |||||
|---|---|---|---|---|---|
| Schneide- durchmesser |
Schneide- länge |
Gesamt- länge |
Schaftdurch- messer |
( unbe- schichtet ) |
( AlTiN ) |
| d1 | l2 | l1 | d2 | ||
| mm | mm | mm | mm | Bestell Nr. | Bestell Nr. |
| 1 | 4 | 38 | 3 | 2060504 | 2036884 |
| 1,5 | 4,5 | 38 | 3 | 2001504 | 2046884 |
| 2 | 6,3 | 38 | 3 | 2041504 | 2056884 |
| 2,5 | 9,5 | 38 | 3 | 2081504 | 2066884 |
| 3 | 12 | 38 | 3 | 2022504 | 2076884 |
| 3 | 25 | 75 | 3 | 2020534 | 2090694 |
| 3,5 | 12 | 50 | 4 | 2062504 | 2086884 |
| 4 | 14 | 50 | 4 | 2003504 | 2096884 |
| 4 | 25 | 75 | 4 | 2040534 | 2001694 |
| 4,5 | 16 | 50 | 6 | 2043504 | 2007884 |
| 5 | 16 | 50 | 6 | 2083504 | 2017884 |
| 5 | 25 | 75 | 5 | 2080534 | 2021694 |
| 6 | 19 | 50 | 6 | 2024504 | 2027884 |
| 6 | 25 | 75 | 6 | 2060534 | 2011694 |
| 7 | 19 | 63 | 8 | 2064504 | 2037884 |
| 8 | 20 | 63 | 8 | 2005504 | 2047884 |
| 8 | 25 | 75 | 8 | 2061534 | 2031694 |
| 9 | 22 | 75 | 10 | 2045504 | 2057884 |
| 10 | 22 | 75 | 10 | 2085504 | 2067884 |
| 10 | 38 | 100 | 10 | 2062534 | 2041694 |
| 11 | 25 | 75 | 12 | 2026504 | 2077884 |
| 12 | 25 | 75 | 12 | 2066504 | 2087884 |
| 12 | 50 | 100 | 12 | 2063534 | 2051694 |
| 12 | 75 | 150 | 12 | 2064534 | 2061694 |
| 14 | 32 | 89 | 14 | 2007504 | 2097884 |
| 14 | 75 | 150 | 14 | 2065534 | 2071694 |
| 16 | 32 | 89 | 16 | 2047504 | 2008884 |
| 16 | 75 | 150 | 16 | 2066534 | 2081694 |
| 18 | 38 | 100 | 18 | 2087504 | 2018884 |
| 18 | 75 | 150 | 18 | 2067534 | 2091694 |
| 20 | 38 | 100 | 20 | 2028504 | 2028884 |
| 20 | 75 | 150 | 20 | 2068534 | 2002694 |
| 25 | 38 | 100 | 25 | 2068504 | 2038884 |
| 25 | 75 | 150 | 25 | 2069534 | 2012694 |
Materialempfehlungen:
